Hardware Solutions

🔌 Hardware product lineup​

AIECG provides professional ECG signal acquisition hardware devices for different application scenarios. Together with our cloud services platform, we deliver end-to-end solutions for customers.

E-HA03 Portable ECG acquisition module​

  • Sampling rate: 125Hz
  • Resolution: 12-bit ADC
  • Number of leads: 1-lead
  • Connection: Bluetooth 5.0
  • Dynamic input range: ±300mV and above
  • Input impedance: >10Mohm
  • Common-mode rejection ratio: ≥60dB
  • Gain accuracy: ≤10%
  • Frequency response range: 0.67–40Hz
  • System noise: ≤50uV
  • Minimum detectable signal: 50uV

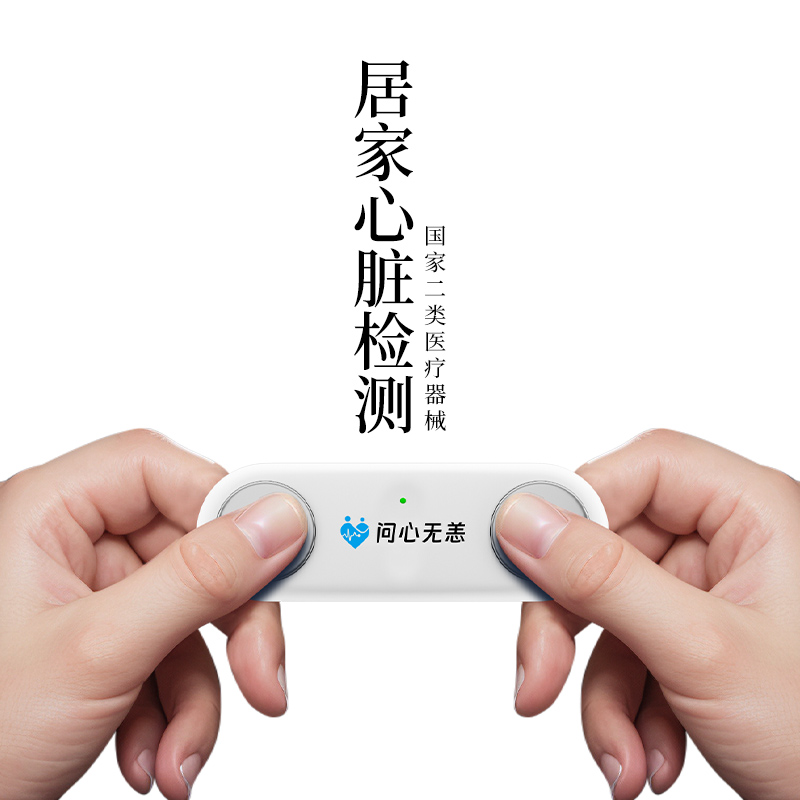

  • Typical use cases: Single-lead ECG devices designed for maximum portability. It can be embedded into hardware that can be touched with both hands (e.g., a steering wheel, keyboard, stationary bike, jump rope). Two thumb electrodes allow users to view ECG waveforms and heart rate. With local computation or access to cloud services, you can receive early warning and risk assessment for various arrhythmia-related conditions.

E-PC01 Adhesive dynamic ECG monitoring module​

  • Sampling rate: 200Hz
  • Resolution: 24-bit ADC
  • Number of leads: II, V1, V5 leads
  • Connection: Bluetooth 5.0
  • Dynamic input range: ±300mV and above
  • Input impedance: >10Mohm
  • Common-mode rejection ratio: ≥60dB
  • Gain accuracy: ≤10%
  • Frequency response range: 0.67–40Hz
  • System noise: ≤50uV
  • Minimum detectable signal: 50uV
  • Inter-lead interference: ≤0.2mV

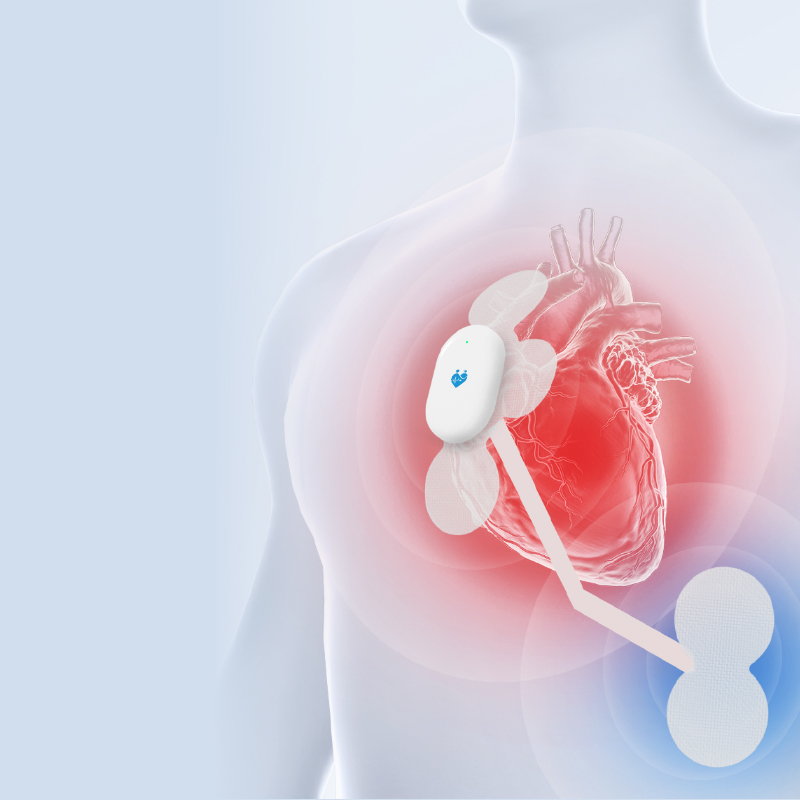

  • Typical use cases: Single/three-lead adhesive dynamic ECG devices. Electrodes are placed on the chest using adhesive pads, enabling continuous long-term ECG recording for up to 72 hours. It can capture occasional arrhythmias and ST changes. Users can upload the full ECG dataset via USB to obtain AI analysis reports and physician interpretation reports from tertiary hospitals.

Note: Bluetooth interface documentation can be provided upon request—please contact us.
